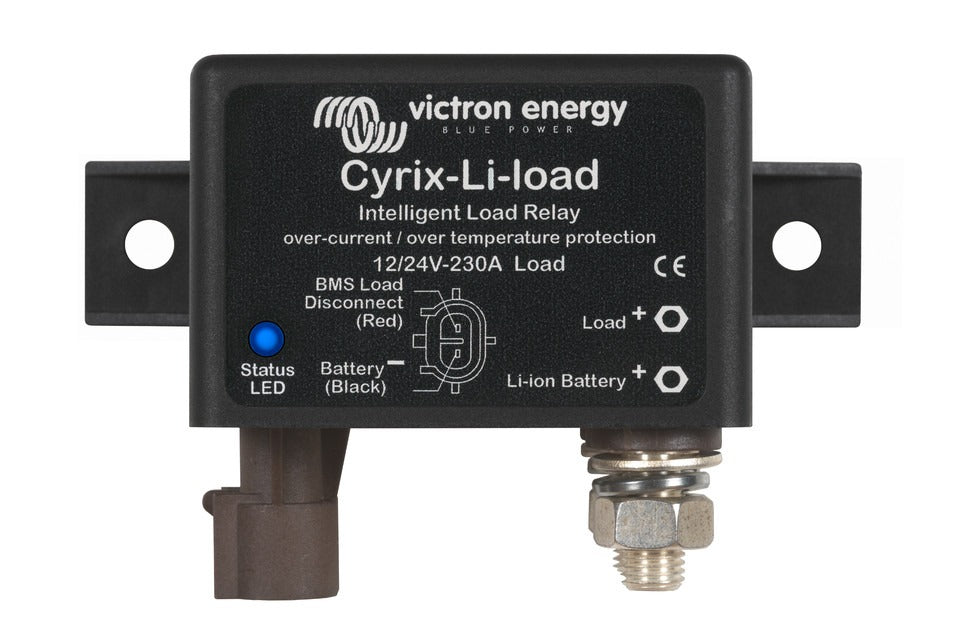

Victron Energy Cyrix-Li-load 12 24V 230A Intelligent Load Relay – CYR010230450 Hot on Sale
28 people are viewing this right now
4 products sold in last 9 hours
Selling fast! Over 8 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Cyrix-Li-load will disengage when its control input becomes free floating. If the battery voltage recovers after disconnection (which will happen when no other loads are connected to the battery), the output of the BMS will become high and the Cyrix will reengage after 30 seconds. After 3 attempts to reengage, the Cyrix will remain disengaged until battery voltage has increased to more than 13 V (resp. 26 V or 52 V) during at least 30 seconds (which is a sign that the battery is being recharged). Alternatively, a BatteryProtect can be used (advantage: very low power consumption).
| Brand |
Victron Energy | ||
|---|---|---|---|
| Manufacturer Part Number |
CYR010230450 | ||
| Voltage |
12 24 | ||
| Continuous current & Breaking capacity at 12V or 24V |
230A | ||
| Current Consumption When Open |
4 mA | ||
| Control Cable Included (Length 1 m) |
Yes | ||
| LED Status Indication |
Yes | ||
| Protection Category |
IP54 | ||
| Dimensions |
H65 x W100 x D50mm | ||
| Weight (kg) |
0.27 | ||
| Warranty |
5 Years | ||
| Title | Default Title |
|---|
