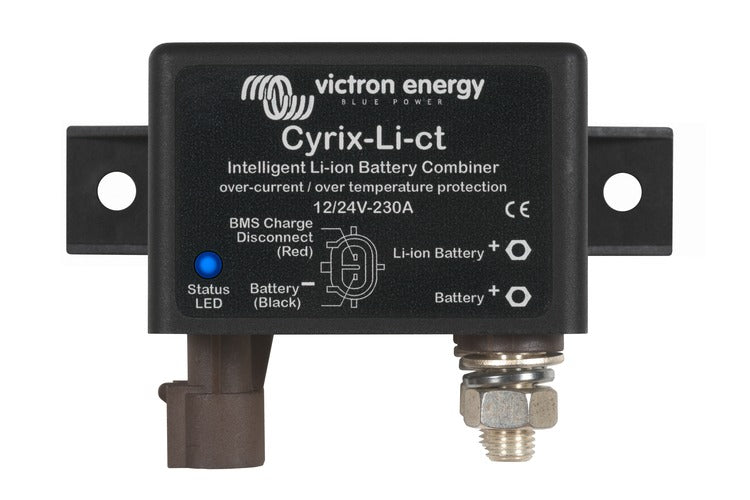

Victron Energy Cyrix-Li-ct 12 24V 230A Intelligent Li-ion Battery Combiner – CYR010230412 Online now
27 people are viewing this right now
10 products sold in last 10 hours
Selling fast! Over 9 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The functionality of the Cyrix-Li-ct is analogous to the Cyrix-ct.
The Cyrix will disengage immediately:
- when its control output becomes free floating, signalling cell over voltage or cell over temperature, and or
- when battery voltage drops below 13,2 V
Start assist function: a short positive pulse will close the relay during 30 seconds.A built-in transient voltage suppressor will limit the voltage spike that may occur when the Cyrix suddenly disengages due to cell overvoltage or over temperature.Brand Victron Energy
Manufacturer Part Number CYR010230412
Voltage 12 24
Continuous current & Breaking capacity at 12V or 24V 230A
Current Consumption When Open 4 mA
Control Cable Included (Length 1 m) Yes
LED Status Indication Yes
Protection Category IP54
Dimensions H65 x W100 x D50mm
Weight (kg) 0.27
Warranty 5 Years
