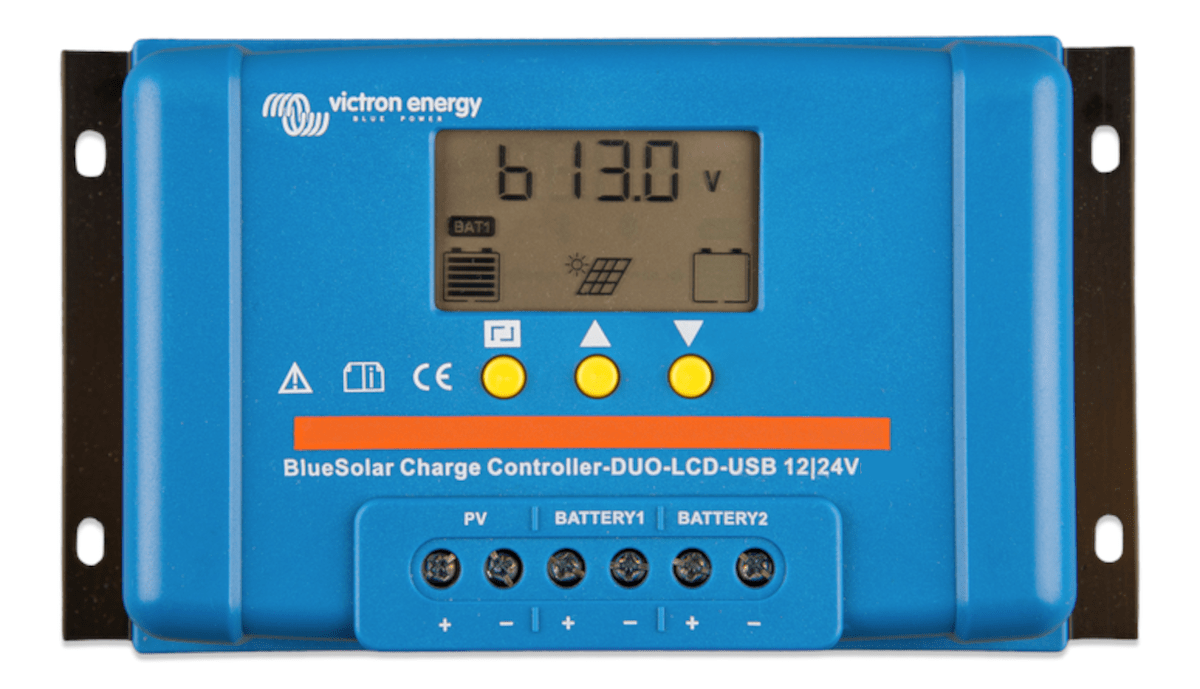

Victron Energy BlueSolar PWM LCD&USB 12 24V 30A – SCC010030050 For Cheap
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Liquid crystal display
For status monitoring and set-up
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.
The connect and disconnect voltages are adjustable.
Day night timing of the load output
This option allows for a pre-set ON-time after dusk.
Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)
Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A
| Brand |
Victron Energy | ||
|---|---|---|---|
| Manufacturer Part Number |
SCC010030050 | ||
| GTIN |
8719076046226 | ||
| Battery Voltage |
12 24 V automatic system voltage detection | ||
| Rated Charge Current |
30A | ||
| Maximum Solar Voltage |
28V 55V | ||
| Load Output |
Manual control + low voltage disconnect + timer | ||
| Grounding |
Common positive | ||
| IP Rating |
IP20 | ||
| Dimensions |
H101 x W184 x D47mm | ||
| Weight |
0.3Kg | ||
| Warranty |
5 Years | ||
| Title | Default Title |
|---|
