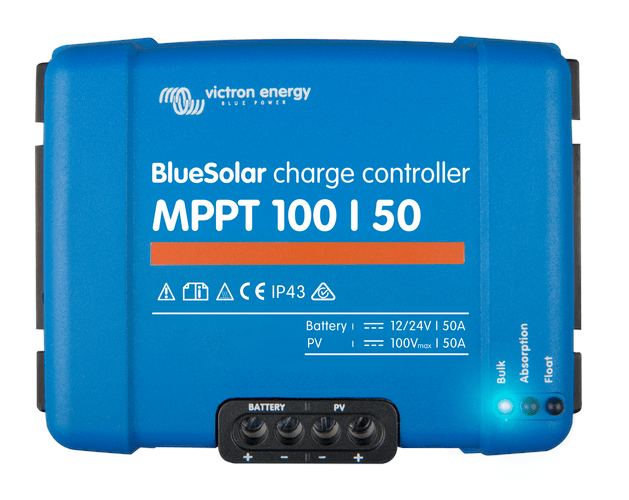

Victron Energy BlueSolar MPPT 100 50 – SCC020050200 on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, BlueSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. BlueSolar maintains battery health, extending its life.
Features
Ultrafast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).
Flexible charge algorithm
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection
Over-temperature protection and power derating when temperature is high.
- PV short circuit and PV reverse polarity protection.
- PV reverse current protection.
- ColorControl GX or other GX devices
- A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.
Brand Victron Energy
Manufacturer Part Number SCC020050200
GTIN 8719076025566
Battery Voltage 12 24V Auto Select
Rated Charge Current 50A
Nominal PV Power, 12V 700W
Nominal PV Power, 24V 1400W
Max. PV Short Circuit Current 60A
Maximum PV Open Circuit Voltage 100V
Efficiency 98%
Charge Algorithm Multi-stage adaptive
Data Communication Port VE.Direct
IP Rating IP43 (electronic components), IP22 (connection area)
Dimensions H130 x W186 x D70mm
Weight 1.3Kg
Warranty 5 Years
Title Default Title
Related products
Review Cart
Victron Energy BlueSolar MPPT 100 50 – SCC020050200 on Sale$50.50Select optionsVictron Energy BlueSolar MPPT 100 50 – SCC020050200 on Sale$50.50Select options
Internal temperature sensor
Compensates absorption and float charge voltage for temperature.
Real-time data display options
