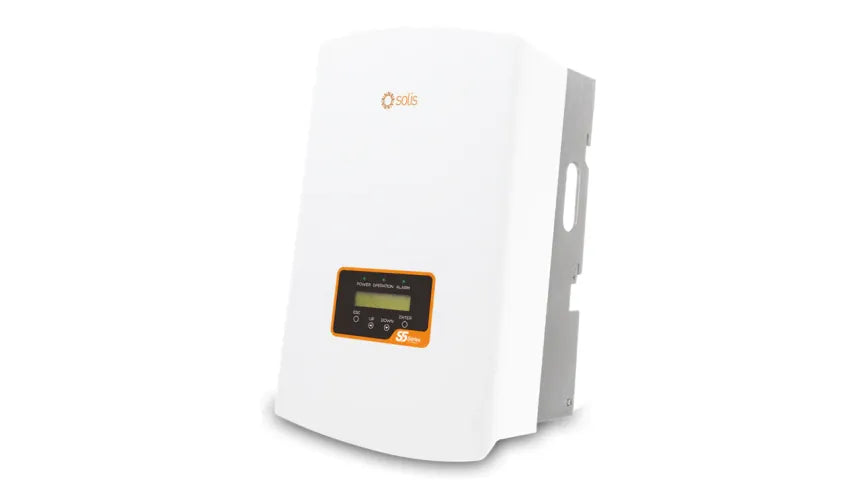

Solis 5kW S5 3 Phase Dual MPPT – DC For Cheap
22 people are viewing this right now
8 products sold in last 15 hours
Selling fast! Over 11 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: SOL-S5-GR3P-5K-DCÂ Inverters – Main Units
- Rating: 5,000W
- Phases: 3
- Max. efficiency of 98.3%Â
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range – Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 16AÂ PV string input x 2
- Maximum AC output power of 5.5kWÂ
- Max PV DC Power of 7.5kW
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 RatedÂ
- DC reverse-polarity protection
- 5-year standard warranty
-
Register on SolisCloud, to support remote upgrade and control.
NRS-097-2-1 Certified
Supplier Part No: SOL-S5-GR3P-5K-DC
Weight: 17 kg
Rated Power: 5,000 W
Min PPT Voltage: 180 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 180 V
DC Shutdown Voltage: 160 V
Max Input Voltage: 1,100 V
Max DC Power: 7,500 W
Max AC Power (5 Minutes): 5,500 W
Surge AC Power (1 Second): 5,500 W
Max DC Current: 32 A
Max DC Inputs: 2
Has DC Fuses: 0
Connector: MC4
Included Connectors: 4
Euro Efficiency: 97.9 %
Transformer: None
MPPT Quantity : 2
Has Integrated DC Switch: Yes
Warranty: 5 yearsTitle Default Title
