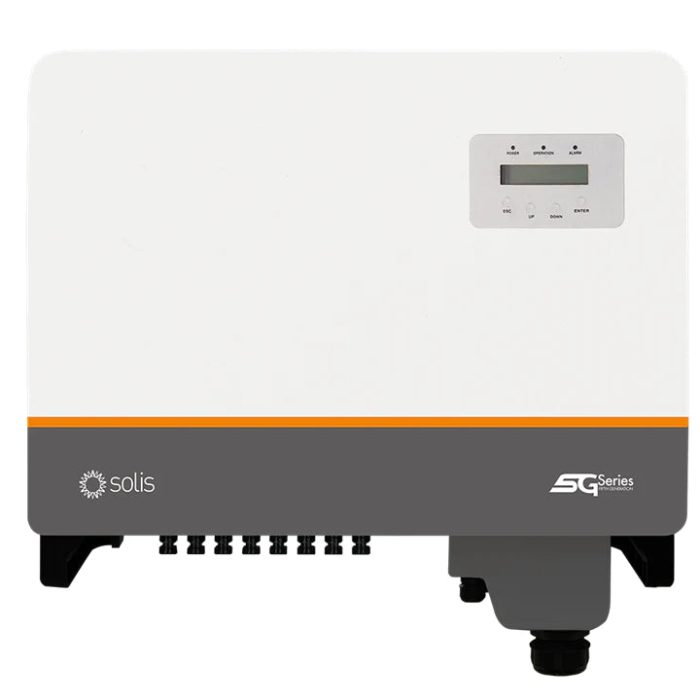

Solis 40kW S5 3 Phase Quad MPPT – DC Online now
24 people are viewing this right now
18 products sold in last 10 hours
Selling fast! Over 20 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: SOL-S5-GC40K-DCÂ Inverters – Main Units
- Rating: 40,000W
- Phases: 3
- Max. efficiency of 98.7%Â
- Type-II over-voltage surge protection for both DC and AC
- Wide voltage range – Ultra low start-up voltage of 180V and max PV input voltage of 1100V
- 32A input per MPPT, 16A input for each PV string
- Maximum AC output power of 44kWÂ
- 4 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
- Intelligent monitoring, Smart I-V Curve Diagnosis
- Integrated AFCI (DC arc-fault circuit protection)
- IP66 RatedÂ
- DC reverse-polarity protection
- 5-year standard warranty
-
Register on SolisCloud, to support remote upgrade and control.
SA: NRS-097-2-1 Certified.
UK: G99 Certified.
This product must be installed by a qualified electrician technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Supplier Part No: SOL-S5-GC40K-DC
Weight: 52 kg
Rated Power: 40,000 W
Min PPT Voltage: 200 V
Max PPT Voltage: 1,000 V
DC Startup Voltage: 200 V
DC Shutdown Voltage: 180 V
Max Input Voltage: 1,100 V
Max DC Power: 60,000 W
Max AC Power (5 Minutes): 44,000 W
Surge AC Power (1 Second): 44,000 W
Max DC Current: 128 A
Max DC Inputs: 8
Has DC Fuses: 0
Connector: MC4
Included Connectors: 16
Euro Efficiency: 98.3 %
Transformer: None
MPPT Quantity : 4
Has Integrated DC Switch: Yes
Warranty: 5 yearsReview Cart
