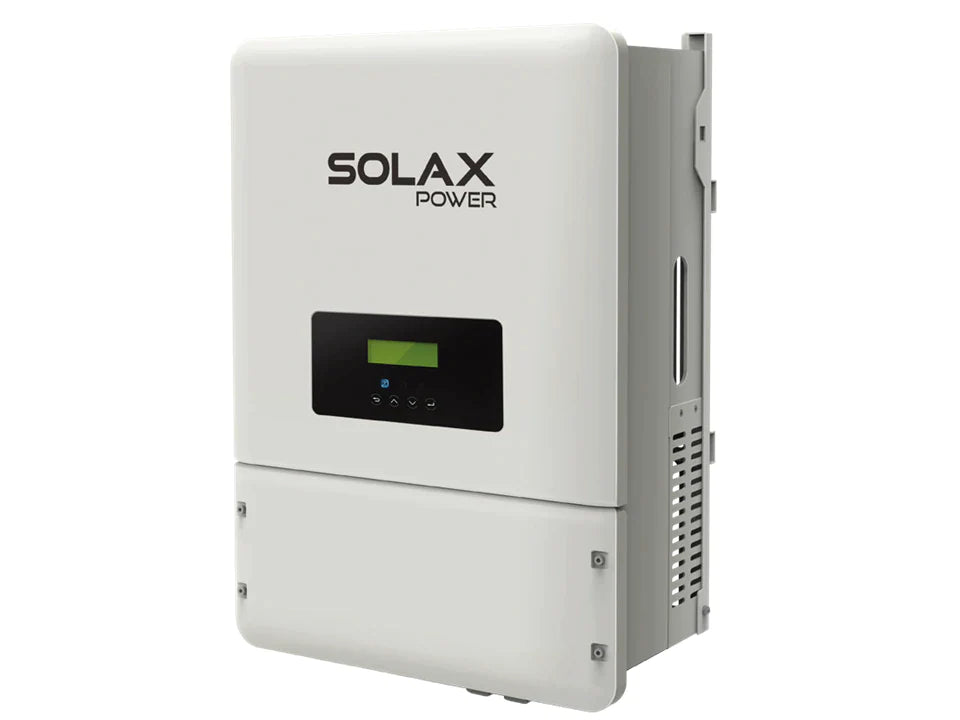

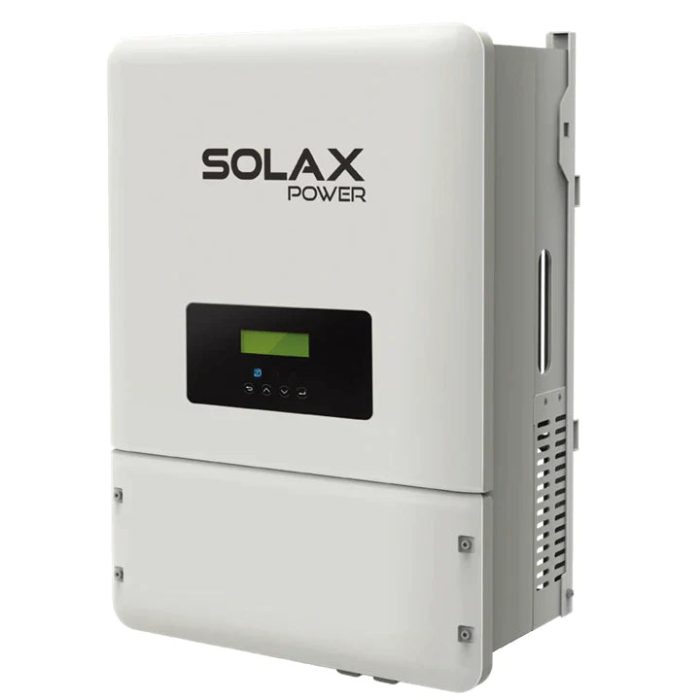

SolaX X3 Hybrid 3 Phase Inverter HV 8.0kW For Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
-
Part No: X3-8000TÂ Storage Systems – Hybrid Inverter
- Unbalanced phase load supported
- Up to 25.2kWh storage per inverter
- Up to 10kW Max charge discharge
- G100 Export Limitation compliant
- Suitable for grid trading applications
- Charging from grid possible
- Fanless design
-
- Supplier Part No: X3-Hybrid 8.0E
- Weight: 48 kg
- Rated Power: 8,000 W
- Min PPT Voltage: 180 V
- Max PPT Voltage: 950 V
- DC Startup Voltage: 180 V
- DC Shutdown Voltage: 180 V
- Max Input Voltage: 1,000 V
- Max DC Power: 12,000 W
- Max AC Power (5 Minutes): 8,000 W
- Surge AC Power (1 Second): 8,800 W
- Max DC Current: 24 A
- Max DC Inputs: 3
- Has DC Fuses: 0
- Connector: SUNCLIXÂ Â
- Included Connectors: 2
- Euro Efficiency: 97 %
- Transformer: None
- MPPT Quantity : 2
- Has Integrated DC Switch: No
- Warranty: 5 years
Please note the minimum number of batteries per X3 Hybrid inverter is 2 and maximum of 4. Please note batteries need to be the same capacity, it’s not possible to connect both 4.5kWh and 6.3kWh to one inverter.
Â
Please note this inverter is not EN50438 IE certified for Ireland.Â
- Supplier Part No: X3-Hybrid 8.0E
X3-HYBRID-5.0T X3-HYBRID-6.0T X3-HYBRID-8.0T X3-HYBRID-10.0T
X3-Hybrid HV Three Phase
Â
The new X3-Hybrid High-Voltage is the latest incarnation in battery storage inverters from SolaX.
The X3 ranges in size from 5 to 10kW and has the ability to install multiple inverters in parallel . It’s equipped with a built-in EPS (Emergency Power Supply), has multiple communication options (additional Wifi or LAN sticks can be purchased separately) and can be controlled remotely using the SolaX monitoring app, X-Cloud.
Â
Additional features:
