FOX ESS H3 10.0KW 3PH Hybrid Inverter with 3PH CT Meter For Cheap

Part No: FE-H3-10.0-CT Storage Systems – Hybrid Inverter

This part is a special offer made up of the following items:

Part

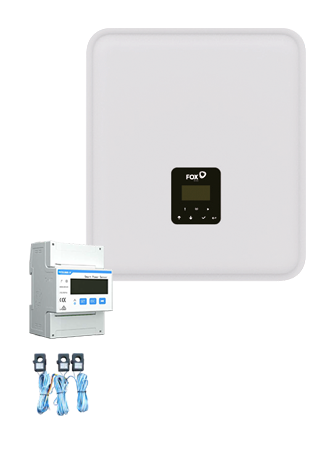

1 x FE-H3-10.0		FOX ESS H3 10.0KW 3PH Hybrid Inverter
1 x FE-3PH-METER-CT		Fox CT Meter (compatible with AC, HY & AIO ranges)

Includes FE-3PH-METER-CT

Harness the power of the sun day and night with FoxESS groundbreaking line of hybrid inverters.

• Easy installation – Plug & Play, built-in fuse protection.
• Maximum yields – Low starting voltage, 97.3% maximum efficiency
• Maximum flexibility – 3 battery types to choose from, True 3-phase backup power
• Monitoring – Monitor remotely via app or web portal.

• FoxESS inverters are configurable with the following batteries:

  • FoxESS inverters are configurable with the following batteries:

    • 1x FE-HV-BMS + (4-8)x FE-HV-2600
    • 1x ECM-2900 (Master) + 2-6x ECS-2900 (Slave)
    • 1x ECM-4100 (Master) + 2-6x ECS-4100 (Slave)
    • 1x ECM-4300 (Master) + 2-6x ECS-4300 (Slave)
    • 1x ECM-4800 (Master) + 2-6x ECS-4800 (Slave)

    • • FoxESS inverters are not compatible with SolarEdge or Huawei optimizers, but with those from Tigo.

        3PH Smart Meter included in packaging.

        Don t forget: You must register your install with Fox online to activate the 10 year product warranty, otherwise it s 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

        PLEASE NOTE: This product requires the following meter for full operation: FE-3PH-METER-CT

        Weight: 28 kg

        Rated Power: 10,000 W

        Min PPT Voltage: 160 V

        Max PPT Voltage: 1,000 V

        DC Startup Voltage: 160 V

        DC Shutdown Voltage: 160 V

        Max Input Voltage: 1,000 V

        Max DC Power: 13,000 W

        Max AC Power (5 Minutes):  10,000 W

        Surge AC Power (1 Second): 11,000 W

        Max DC Current: 26 A

        Max DC Inputs: 3

        Has DC Fuses: 1

        Connector: MC4

        Included Connectors: 6

        Euro Efficiency: 98 %

        Transformer: N A

        MPPT Quantity : 2

        Has Integrated DC Switch: Yes

        Warranty: 5 years
