Showing 2881–2896 of 3966 results
Part No: MC4-SPAN-MET Tools – Accessories Assembly and unlocking tool, incl. belt pouch (consisting of 2 open-end spanners), metalMC4SPAN, Stäubli, Tools, Accessory Supplier Part No: 32.6058 Weight: 0.3 kg
Part No: MC4-CRIMP-TOOL Tools – Accessories Crimping pliers for private use PV-CZM-BS Suitable for the assembly of products approved by TÜV in small amounts. Simple crimping tool without locator and without spare parts (not possible to replace the inserts) Crimp cycles : 30’000 cycles guaranteed Complete tool for the assembly of the original MC4….
Part No: MC4-CONN14-2-PACK Cables – Connectors A pack of 2x Male and 2x Female cable couplers. Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug…
Supplier Code:32.0015P0001 Male cable coupler as individual part (including insulating part) Snap-in lock Locking by safety lock clip PV-SSH4 in accordance with NEC 2011, can be released only with tool Proven MULTILAM technology with high long-term stability, which ensures consistently low performance loss throughout the entire service life of the plug connector Tried and tested…
Part No: MC4-SPAN Tools – Accessories Open-end spanner and unlocking tool MC4 To tighten and unscrew the cable gland and to open the locking device of the connection.ords: MC4SPAN, Stäubli, Tools, Accessory Supplier Part No: 32.6024 Weight: 0.05 kg

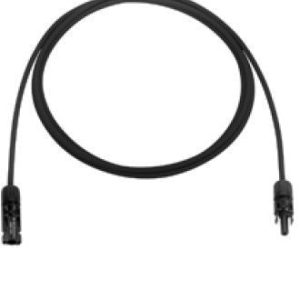

Part No: MC4-10M-1 Cables – Pre Terminated Cables Keywords: MC410M2, Stäubli, PV Cable, Pre Terminated Cable Supplier Part No: 32.00226-10M21 Weight: 0.58 kg Length: 10 m Area: 4 mm2 Colour: Black Cores: 1 – N Max Current: 44
Part No: MC4-2M-2 Cables – Pre Terminated Cables MC4 10M2, 1xMale, 1xFemale each cable, MC4.PV Cable, Pre Terminated Cable. Please note: 6mm cable may be substituted at the 4mm price when 4mm cable is out of stock. A mix of 4 and 6mm will be provided. Supplier Part No: 96274 Weight: 0.27 kg Length: 2…
Part No: MC4-5M-1 Cables – Pre Terminated Cables Snap-in lock Supplier Part No: 32.0026-50021 Weight: 0.29 kg Length: 5 m Area: 4 mm2 Colour: Black Cores: 1 – N Max Current: 44
Part No: MC4-CAP-FEMALE Cables – Accessories Snap-in lock Supplier Part No: 32.0717 Weight: 0.005 kg
Part No: MC4-CAP-MALE Cables – Accessories Snap-in lock Supplier Part No: 32.0716 Weight: 0.019 kg
Part No: MC4-SPL-2 Cables – Connectors MC-4 contact doubler – Pack of 2 Pairs MC-4 splitter kit, consisting of: 2 x MC-T splitter sockets (2 x female connectors, 1 x male connector) 2 x MC-T4 splitter plugs (2 x male connectors, 1 x female connector) For time-saving, safe contact duplication without additional connectors. Branch connectors. Keywords:…

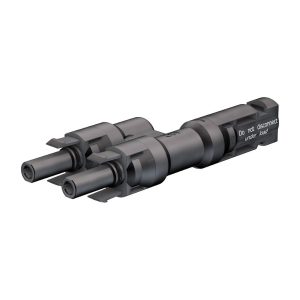

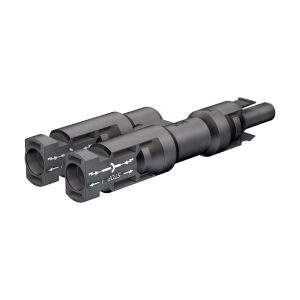

MC4-Evo 2 Y-Splitter is TÜV Rheinland certified and guarantees a long-lasting, stable connection within a PV DC string: Minimal energy loss, low heat generation. Robust housing, safety class IP68 (1 m, 1 h). Cable cross-section 6 mm² MC-4 splitter kit, consisting of: MC4-Y-CONN-FEM and MC4-Y-CONN-MAL For time-saving, safe contact duplication without additional connectors. Branch connectors. Keywords: MC4SYPL2,…
MC4-Evo 2 Y-Splitter is TÜV Rheinland certified and guarantees a long-lasting, stable connection within a PV DC string: Minimal energy loss, low heat generation. Robust housing, safety class IP68 (1 m, 1 h). Cable cross-section 6 mm² Supplier Part No: 32.0334 Weight: 0.25 kg
mC4-Evo 2 Y-Splitter is TÜV Rheinland certified and guarantees a long-lasting, stable connection within a PV DC string: Minimal energy loss, low heat generation. Robust housing, safety class IP68 (1 m, 1 h). Cable cross-section 6 mm² Supplier Part No: 32.0333 Weight: 0.25 kg
Part No: MC4-CRIMP-TOOL-EVO2-PRO Tools – Accessories Crimping pliers for industrial (professional) use PV-CZM-41100 for MC4-EVO2 only. These are suited for the processing of high numbers of pieces and can be adjusted to the product to be processed with the help of changeable locators and crimp inserts. Crimp cycles: 50 000 cycles after which new individual crimp…
The MC4-Evo2A is the latest addition to the Stäubli Electrical Connector PV portfolio. Internationally certified with IEC, UL, JET, cTÜVus Approved for 1500 V DC (IEC) MULTILAM Technology, has proven the quality and durability several 100 million times since 2004 Suited for all climatic environments thanks to resistance to UV, ammonia, salt-mist spray and high…
