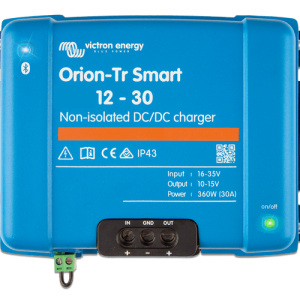

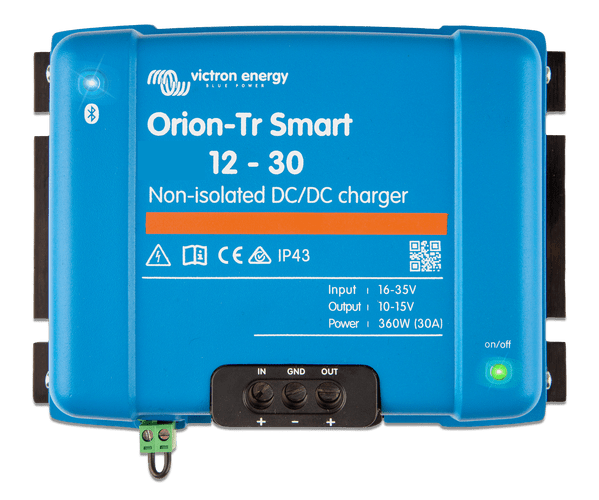

Victron Energy Orion-Tr Smart 12 12-30A (360W) Non-Isolated DC-DC Charger – ORI121236140 Discount

$70.79

21 people are viewing this right now
16 products sold in last 11 hours
Selling fast! Over 3 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on off switch and has an engine running detection mechanism.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power.

Suitable for high temperatures up to 55°C with a full rated output up to 40°C.



Features

Bluetooth Smart enabled

Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.

Fully programmable

  • Battery charge algorithm (configurable) or fixed output.
  • Smart alternator compatibility: engine running detection mechanism.

    • Adaptive 3-stage charge algorithm: bulk – absorption – float

      • For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.
      • For lithium batteries absorption time is fixed, default 2 hours.
      • Alternatively, a fixed output voltage can be chosen.

        • Remote on-off

          A remote on off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

          All models are short circuit proof and can be paralleled to increase output current

          An unlimited number of units can be connected in parallel.

          High temperature protected

          The output current will reduce at high ambient temperature.

          IP43 protection

          When installed with the screw terminals oriented downwards.

          Screw terminals

          No special tools needed for installation.

          Input fuse (not replaceable)

          Brand

          Victron Energy
          Manufacturer Part Number

          ORI121236140
          Input voltage range

          10-17V
          Under voltage shut down

          7V
          Under voltage restart

          7.5V
          Nominal output voltage

          12.2V
          Output voltage adjust range

          10-15V
          Cont. output current at nominal output voltage and 40°C

          30A
          Short circuit output current

          60A
          Cont. output power at 25°C

          430W
          Cont. output power at 40°C

          360W
          Efficiency

          87%
          DC connection

          Screw Terminals
          IP Rating

          IP43
          Dimensions

          H130 x W186 x D80mm
          Weight

          1.8Kg
          Warranty

          5 Years
