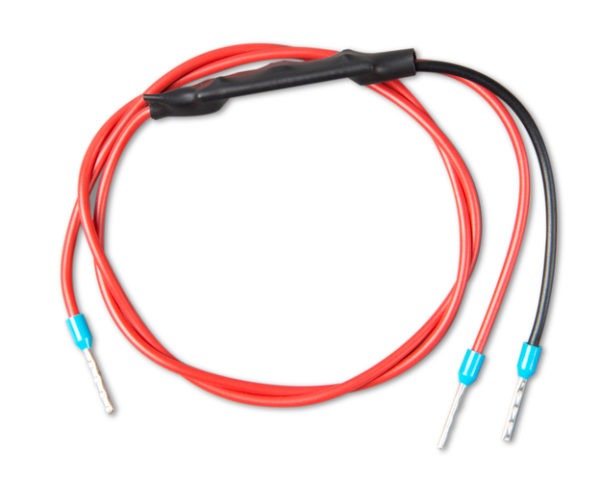

Victron Energy Inverting remote on-off cable – ASS030550120 Hot on Sale

The load output of an MPPT 75 15 or MPPT 100 15, for example, can be used to control an inverter. Some inverters will switch on when the remote control input is pulled high. The remote control input of other inverters must be pulled down to switch on. Pull down to switch on is needed for the Victron inverters model Phoenix 12 180, 24 180, 12 350 and 24 350. These inverters should be interfaced to the load output of the MPPT 75 15 or MPPT 100 15 with the inverting remote on-off cable.

All Phoenix Inverters rated at 3kVA and more and all Multi C’s, Multi’s and Quattro’s also require active pull down to switch on, and the inverting remote on-off cable can be used to interface between the remote on-off terminal and a source signal that turns high when switch on is required.
