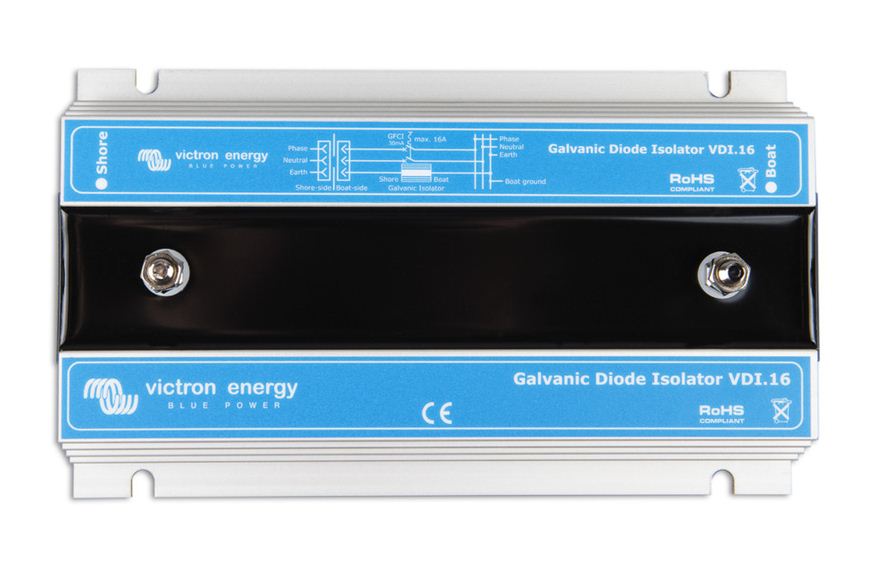

Victron Energy Galvanic Isolator VDI-16 – GDI000016000 Online Hot Sale
29 people are viewing this right now
5 products sold in last 16 hours
Selling fast! Over 15 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The isolator is installed directly behind your boat’s 230V connection. The forward voltage from the galvanic isolator is higher than the potential difference between metals. As a result, this voltage will not allow conduction and as such, the galvanic isolator will prevent any electrolytic current. However, if there is a (higher) error voltage in the AC circuit, the diodes will allow current through and the residual-current device will break the circuit.
| Brand |
Victron Energy | ||
|---|---|---|---|
| Manufacturer Part Number |
GDI000016000 | ||
| Peak Current (20 ms) |
1600 A | ||
| Maximum Current |
16 A | ||
| Connection |
M6 | ||
| IP Rating |
IP67 | ||
| Dimensions |
H60 x W120 x D200mm | ||
| Weight (kg) |
1 | ||
| Warranty |
5 Years | ||
| Title | Default Title |
|---|
