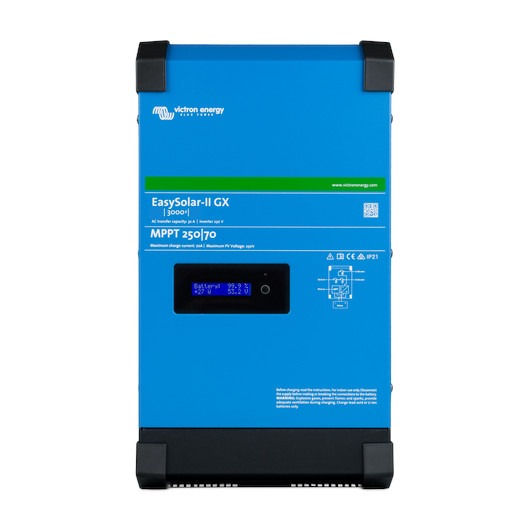

Victron Energy EasySolar-II 24V 3000VA 70A 32A MPPT 250 70 GX – PMP242307010 Cheap

The Victron EasySolar-II GX integrates the following elements:

• A MultiPlus-II inverter charger
• A SmartSolar MPPT -Tr solar charge controller
• A GX device with a 2 x 16 character display

• These elements come prewired together inside a single unit. This greatly simplifies most installations, saving time and money.

  Display and wifi

  The display reads battery, inverter and solar charge controller parameters. The same parameters can be accessed with a smartphone or other wifi enabled device. In addition, wifi can be used to set up the system and to change settings.

  Solar charge controller

  The DC output of the SmartSolar MPPT is parallel wired with the DC connection of the MultiPlus-II inverter charger. The on off mechanism of the MultiPlus-II also controls the SmartSolar MPPT.

  GX device

  The integrated GX device includes:

  • A VE.Can interface. This can be used to connect to Victron VE.Can devices (e.g. VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery
  • A USB port
  • A Ethernet port
  • A VE.Direct port The GX device controls the MultiPlus-II and the SmartSolar MPPT with respectively a VE.Bus and a VE.Direct connection.

  • Brand		Victron Energy
    Manufacturer Part Number		PMP242307010
    GTIN		8719076049265
    Voltage		24V
    Cont. Output Power at 25°C		3000VA
    Peak Power		5500W
    Output AC Voltage		230V
    Transfer Switch		32A
    Max. AC Input Current		32A
    Max. Battery Charge Current		70A
    Protection Category		IP21
    Efficiency		94%
    Bluetooth Compatible		Yes
    Dimensions		H499 x W268 x D237mm
    Weight		26Kg
    Warranty		5 Years
