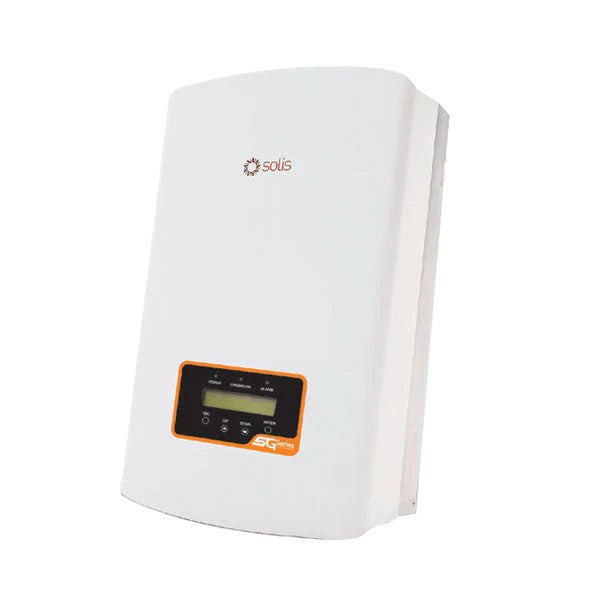

Solis 8.0kW 5G Dual MPPT – Single Phase with DC Online Sale
29 people are viewing this right now
9 products sold in last 13 hours
Selling fast! Over 20 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: SOL-8.0-5G-DT-DCÂ Inverters – Main Units
- Rating: 8,000W
- Phases: 1
- Over 98.1% Max. efficiency
- Friendly and adaptable connection to the grid
- Support 1.1 times overload, increase power generation
- IP65 protection grade, suitable for outdoor installation
- RS485, WiFi LAN GPRS (optional) interface
- Light weight 13.3 kg, Single-person maintainable installation
- WiFi monitoring available-Android and Apple App store available
-
- Data Sheet Solis 1PH 5G 8K
- Supplier Part No: SOLIS-8.0-5G-DT-DC
- Weight: 13.3 kg
- Rated Power: 8,000 W
- Min PPT Voltage: 90 V
- Max PPT Voltage: 520 V
- DC Startup Voltage: 120 V
- DC Shutdown Voltage: 90 V
- Max Input Voltage: 600 V
- Max DC Power: 10,400 W
- Max AC Power (5 Minutes): 8,000 W
- Surge AC Power (1 Second): 8,000 W
- Max DC Current: 37.5 A
- Max DC Inputs: 3
- Has DC Fuses: 0
- Connector: MC4Â Â
- Included Connectors: 4
- Euro Efficiency: 97.3 %
- Transformer: None
- MPPT Quantity : 2
- Has Integrated DC Switch: Yes
- Warranty: 5 years
Title Default Title
Related products
Â
Please note this inverter has two MPP trackers, each with different maximum allowed DC Current!
MPP Tracker A is limited to 12.5A and should only have single string connected to it, MPP tracker B can have two strings connected to it with maximum current up to 25A.
Â
- Data Sheet Solis 1PH 5G 8K
  7-8kW 5G Single Phase Inverter
