Part No: SOL-S5-GC50K-DC Inverters – Main Units

• Rating: 50,000W
• Phases: 3

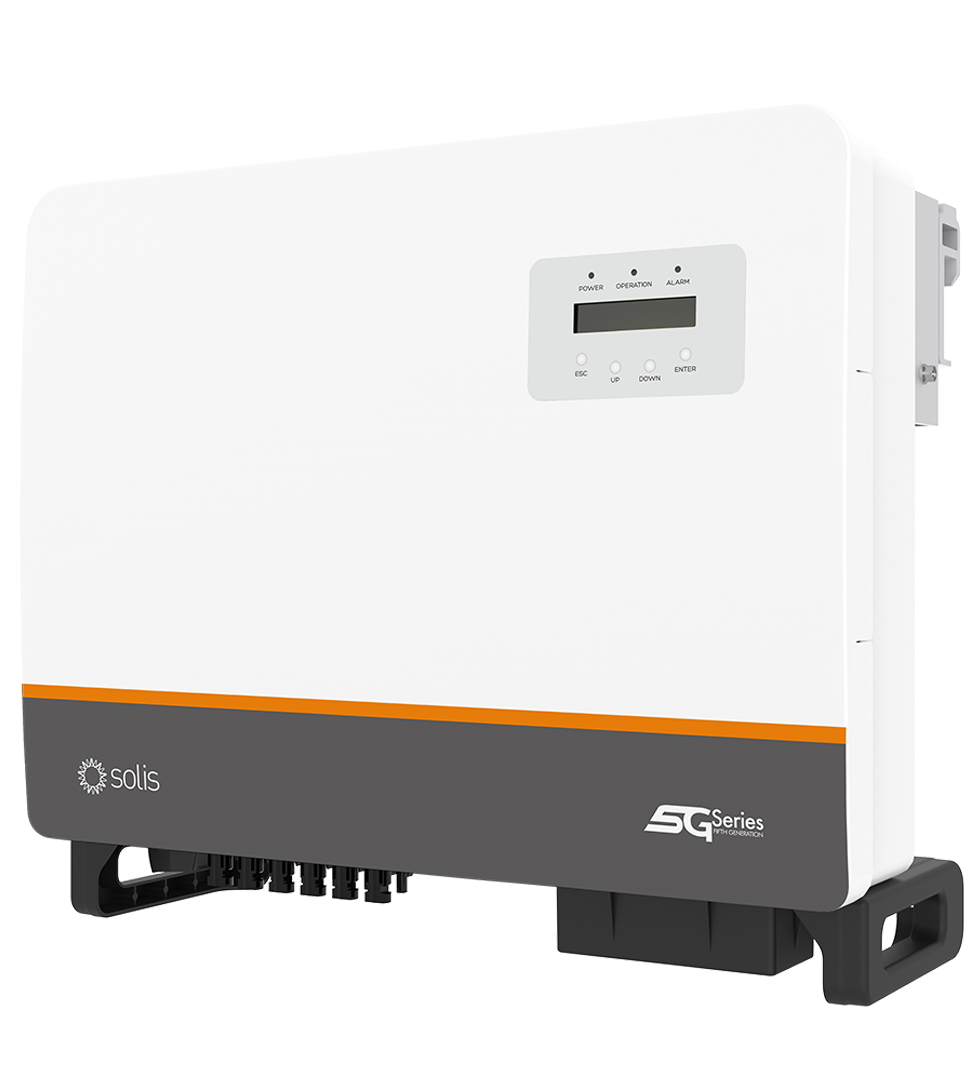

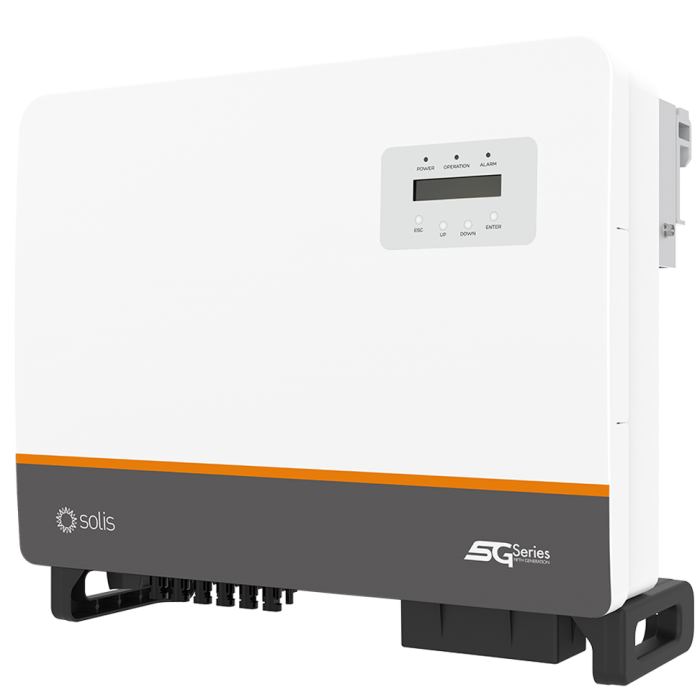

• S5-GC50K – Series 5 Three Phase Grid-Tied Inverter

  Product Features

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range – Ultra low start-up voltage of 195V and max PV input voltage of 1100V
  • Max PV DC Power of 75kW
  • 32A input per MPPT, 16A input for each PV string
  • Maximum output power of 55kW
  • 5 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated and C5 Anti-Corrosion Level
  • Integrated DC switch for emergency shut-down of PV power or safe PV maintenance
  • DC reverse-polarity protection
  • Supports PLC GPRS WiFi communication with less wiring and reduced installation costs
  • 5-year standard warranty

  • Register on SolisCloud, to support remote upgrade and control.

    NRS-097-2-1 Certified

    German and Dutch Installation Manuals still pending from the manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.

    This product must be installed by a qualified electrician technician. All installations must adhere to local wiring regulations and standards.
    Supplier Part No: SOL-S5-GC50K-DC
    Weight: 54.5 kg
    Rated Power: 50,000 W
    Min PPT Voltage: 195 V
    Max PPT Voltage: 1,000 V
    DC Startup Voltage: 195 V
    DC Shutdown Voltage: 180 V
    Max Input Voltage: 1,100 V
    Max DC Power: 75,000 W
    Max AC Power (5 Minutes): 55,000 W
    Surge AC Power (1 Second): 55,000 W
    Max DC Current: 160 A
    Max DC Inputs: 10
    Has DC Fuses: 0
    Connector: MC4
    Included Connectors: 20
    Euro Efficiency: 98.3 %
    Transformer: None
    MPPT Quantity : 5
    Has Integrated DC Switch: Yes
    Warranty: 5 years
