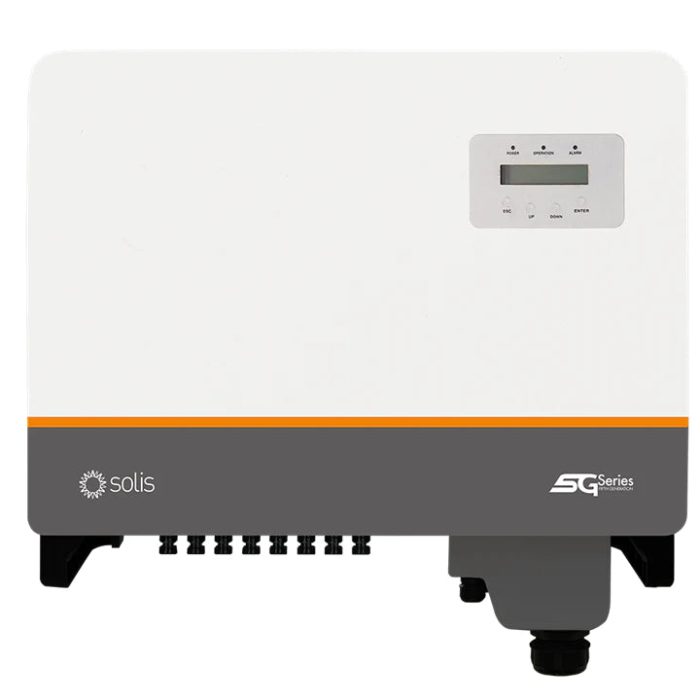

Part No: SOL-S5-GC36K-DC Inverters – Main Units

• Rating: 36,000W
• Phases: 3

• S5-GC36K – Series 5 Three Phase Grid-Tied Inverter

  Product Features:

  • Max. efficiency of 98.7%
  • Type-II over-voltage surge protection for both DC and AC
  • Wide voltage range – Ultra low start-up voltage of 180V and max PV input voltage of 1100V
  • 32A input per MPPT, 16A input for each PV string
  • Maximum AC output power of 39.6kW
  • 4 MPPT design with precise MPPT algorithm, with 2 DC inputs per MPPT effectively reducing string mismatch
  • Intelligent monitoring, Smart I-V Curve Diagnosis
  • Integrated AFCI (DC arc-fault circuit protection)
  • IP66 Rated
  • DC reverse-polarity protection
  • 5-year standard warranty

  • Register on SolisCloud, to support remote upgrade and control.

    SA: NRS-097-2-1 Certified

    EU: German installation manual stlll pending from manufacturer. UK: Please note that a slight adjustment was required on the G99 report which has resulted in S5-GC range temporarily losing their G99 approved status. The updated form has already been resubmitted to the ENA and is currently awaiting assessment.

    This product must be installed by a qualified electrician technician. All installations must adhere to local wiring regulations and standards.
    Supplier Part No: SOL-S5-GC36K-DC
    Weight: 48 kg
    Rated Power: 36,000 W
    Min PPT Voltage: 200 V
    Max PPT Voltage: 1,000 V
    DC Startup Voltage: 200 V
    DC Shutdown Voltage: 180 V
    Max Input Voltage: 1,100 V
    Max DC Power: 54,000 W
    Max AC Power (5 Minutes): 39,600 W
    Surge AC Power (1 Second): 39,600 W
    Max DC Current: 128 A
    Max DC Inputs: 8
    Has DC Fuses: 0
    Connector: MC4
    Included Connectors: 16
    Euro Efficiency: 98.3 %
    Transformer: None
    MPPT Quantity : 4
    Has Integrated DC Switch: Yes
    Warranty: 5 years
