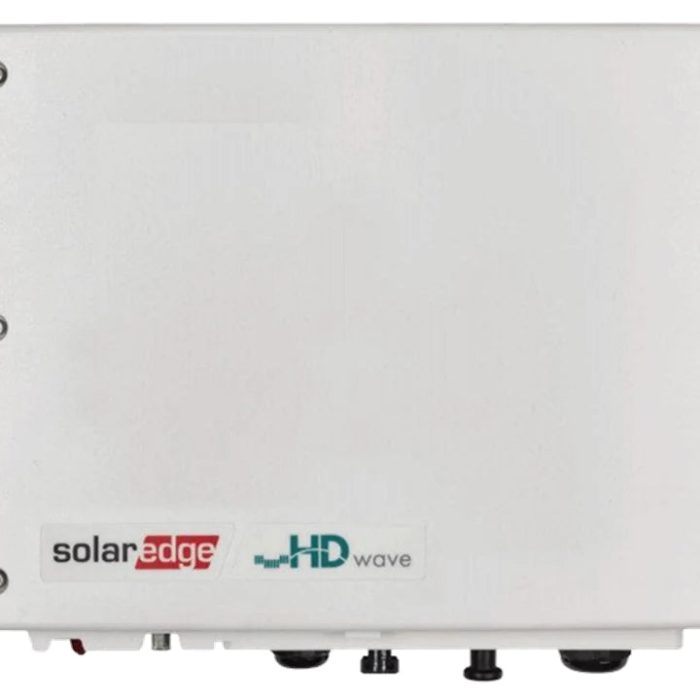

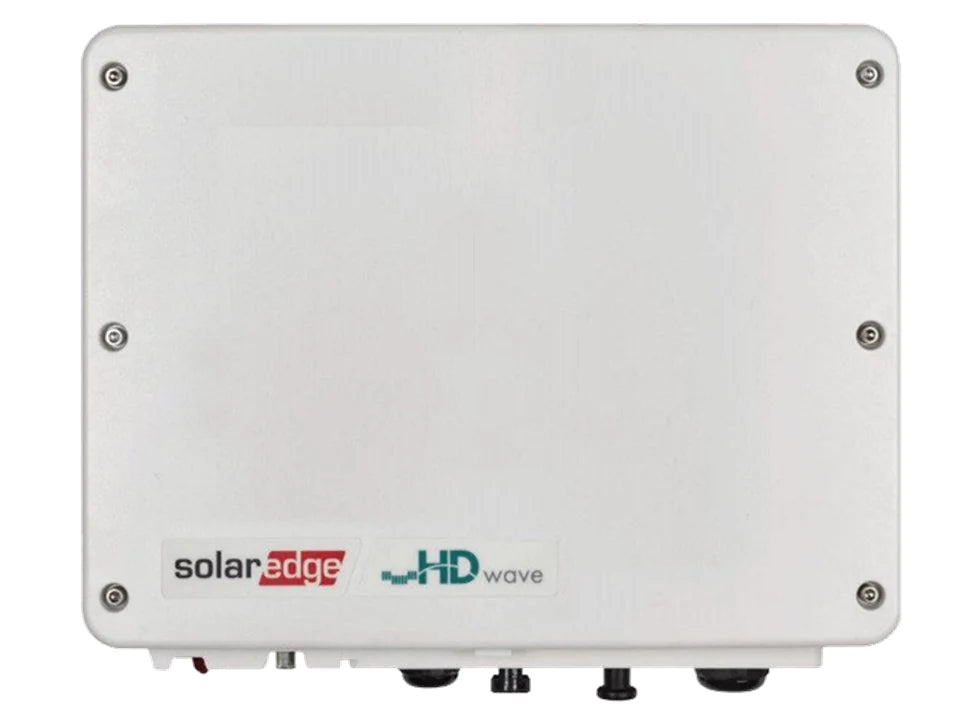

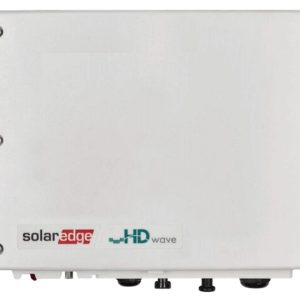

SolarEdge 3680W 1PH Home Wave Inverter – NO DISPLAY Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: SE-3680H-APPÂ Inverters – Main Units
- Rating: 3,680W
- Phases: 1
- Supplier Part No: SE3680H-RW000BNN4
- Weight: 7.8 kg
- Rated Power: 3,680 W
- Min PPT Voltage: 0 V
- Max PPT Voltage: 0 V
- DC Startup Voltage: 0 V
- DC Shutdown Voltage: 0 V
- Max Input Voltage: 480 V
- Max DC Power: 7,360 W
- Max AC Power (5 Minutes): 3,680 W
- Surge AC Power (1 Second): 3,680 W
- Max DC Current: 10.5 A
- Max DC Inputs: 1
- Has DC Fuses: 0
- Connector: MC4 Â
- Included Connectors:Â 2
- Euro Efficiency: 98.8 %
- Transformer: None
- MPPT Quantity : 0
- Has Integrated DC Switch: Yes
- Warranty: 12 years
Single Phase Inverters with HD-Wave Technology and SetAPPÂ
The SolarEdge single phase inverter with HD-Wave technology breaks the mould of traditional solar inverters. Winner of the prestigious 2016 Intersolar Award and the renowned 2018 Edison Award, the single phase Inverter is specifically designed to work with SolarEdge power optimizers and features a standard 12-year warranty extendable to 20 or 25 years.
SolarEdge’s Innovative Inverter Topology
MPPT in Optimisers means inverter is only responsible for DC to AC inversion. This means inverter is simpler, more cost effective and more reliable. The fixed string voltage ensures operation at the highest efficiency at all times independent of string length and temperature.
HD-Wave Technology: A New Era for PV Inverters
Latest generation inverter HD-Wave technology means the inverters can be smaller and lighter than ever. The record-breaking 99% efficiency allows more energy production for an improved ROI.
Easy Inverter Commissioning with Inverter SetApp
SolarEdge single phase inverters have not display. They use a smart new commissioning method directly through a smartphone using the intuitive SetApp mobile application.
UK only: This inverter has been tested and certified according to G98 or G99, but only with the most recent Firmware version. Please update the inverter firmware during SetAPP phone app commissioning process as per the per Installation Manual.
Please note: This inverter does not have a display.
