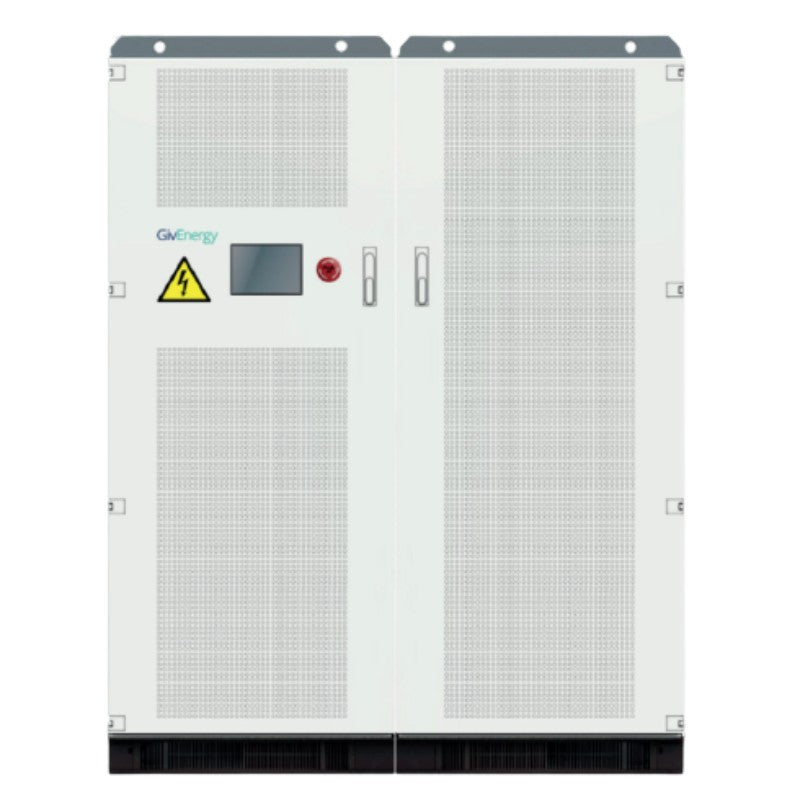

GivEnergy 3ph 30kW PCS with 138kWh Storage Discount

The GivPCS 30kW controller with scalable 69kWh battery options, is a small to medium enterprise energy storage system. The use of modular battery packs (9.6kWh each) that use the latest in LiFePO_{4 prismatic cell technology with a plug and play design make scaling the system to the perfect capacity simple. For larger projects up to 4 battery racks (69 kWh each) can be added the the system, giving a total combined capacity of 276 kWh.}

Features:

• Flexible Control – System can be controlled and monitored via GivEnergy cloud or via external signal.
• Adjustable Power Rating – EMS allows control of charge and discharge rates.
• Industrial & Commercial – Suitable instalation for a wide range of applications.
• Modular Design – Multiple units can be installed in parallel.

• The system can be monitored and controlled using the energy management system (EMS) on the GivEnergy platform with additional monitoring points available to integrate to give more specific data e.g. renewable energy generation on site.

  Bespoke software modification available on request – please get in touch for prices.

  DC (Battery)

  Battery Voltage range:

  300 – 850V

  Max current:



  Communication
  BMS Interface
  Device Interface

  43A



  RS485 CAN
  RS485, TCP IP

  AC (On-grid)

  Max. Output Power:

  33kVA

  Rated Power:

  30KW

  Rated Voltage:

  400V

  Voltage Range:

  320V – 460V

  Rated Current:

  43A

  Max. Output Current:
  Rated Frequency:
  THDI:
  PF:

  48A
  50 60Hz
  <3%
  1 lagging – 1 leading

  AC (Off-grid)

  Rated Voltage:

  400V

  Rated Frequency:

  50 60Hz

  Overload Capability:

  110%-continuous

  General Information

  • Efficiency – 96.3%
  • Weight – 600Kg
  • Dimensions – 800 x 800 x 2050 (mm)
  • Protection Degree – IP21

  • This product does not have G99 certification without a dedicated G99 protection relay, that can be made part of the installation costs.
