Product on sale

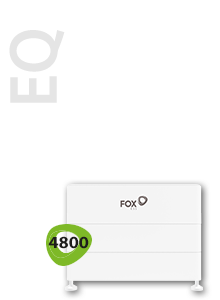

Fox EQ HV EQ4800-L3, 13.98kWh 1x Master 2x Slave on Sale
21 people are viewing this right now
16 products sold in last 5 hours
Selling fast! Over 5 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Part No: FE-HV-EQ-3-4.8-14.4 Storage Systems – Li-ion Battery Pack
- 4.66kWh capacity
- Scalable to 41.94 kWh
- 90% Depth of Discharge
- Large temperature tolerance
- Easy installation
- CAN communication
- High voltage
-
- Weight: 125 kg
- Battery Type: Lithium Ion
- Nominal Energy: 13980 Wh
- Depth of discharge: 90.00 %
- Voltage: 134 V
- Continuous Discharge Rate (Normal Use): 2240 W
- Maximum Discharge Rate (5 Minutes): 4480 W
- Surge Discharge Rate (15 Seconds): 5785 W
- Maximum Charge Rate (5 Minutes): 4480 W
The quick & easy install feature allows for more EQ4800 battery modules to be added post installation.
Weight: 122.5kg
Dimensions (Width, Hight, Depth): 570mm x 524mm x 380mm
Don t forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it s 5 years as standard.
This battery requires a MINIMUM of 2 modules to work (Master + Slave). This battery can have a MAXIMUM of 9 modules in a stack (1x Master + 8x Slaves). Please check Fox Battery Size Guide.
