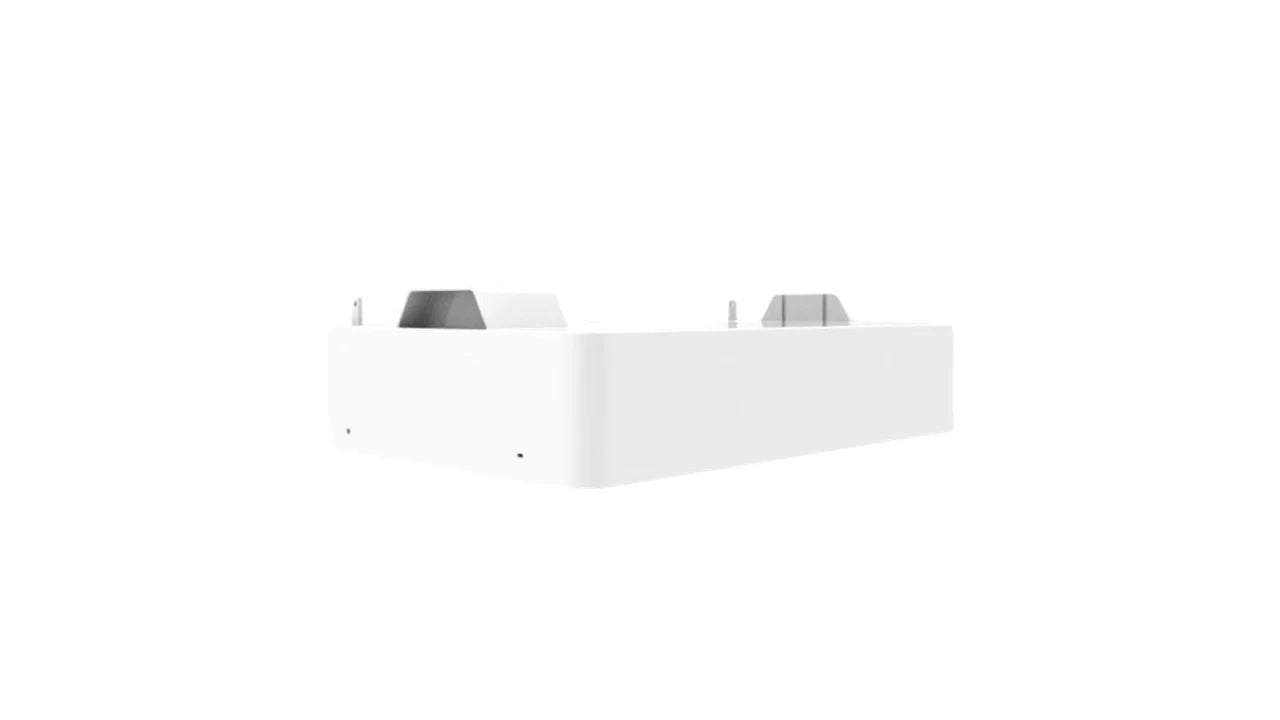

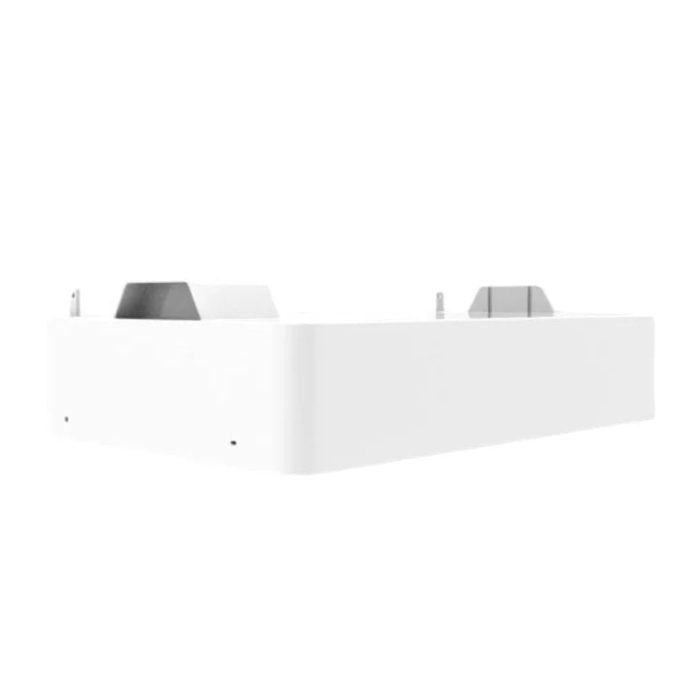

Part No: FE-HV-ECM-2900-4A2C Storage Systems – Li-ion Battery Pack

Fox ECS – High Voltage Battery (Slave)

ECS2900-V2 Connector A

• 2.88kWh Capacity
• Scalable to 20.16kWh
• 90% Depth of Discharge
• Wide Temperature Tolerence
• Easy Installation
• CAN RS485 Communication
• High Voltage

• Don t forget: You must register your install with Fox online to activate the 12 year product warranty, otherwise it s 5 years as standard. Please click here for registration page. Please check the warranty document for more information.

  This battery requires a MINIMUM of 2 modules to work (Master + Slave), This battery can have a MAXIMUM of 7 modules in a stack (1x Master + 6x Slaves)



  If you are adding battery modules to a pre-existing Energy Cube stack, it’s important that the new batteries are compatible with your original battery modules.  Please contact your Technical person via the portal and provide a photograph of the original battery stack to help us determine correct compatibility.

  IMPORTANT REMINDER: When increasing the capacity of this battery stack, make sure the battery is the same connector type. We only stock the VERSION 2 s of the ECS batteries. We stock both the Connector Type A  and Connector Type  B variations. This is the Connector Type A variation.

  This product must be installed by a qualified electrician technician. All installations must adhere to local wiring regulations and standards. Powerland will not be held liable for any product malfunctions as a result of incorrectly installed systems.

  Supplier Part No:

  FE-HV-ECM-2900-4A2C

  Weight:

  37.95 kg

  Rated Power:

  2,880 W

  Battery Type:

  Lithium Ion

  Nominal Energy:

  2880 Wh

  Depth of discharge:

  90.00 %

  Voltage:

  52 V

  Continuous Discharge Rate (Normal Use):

  1440 W

  Maximum Discharge Rate (5 Minutes):

  2880 W

  Surge Discharge Rate (15 Seconds):

  3000 W

  Maximum Charge Rate (5 Minutes):

  2880 W
